| MOQ: | 1PCS |
| Price: | USD 9 - 100 |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 1000 PCS/Month |

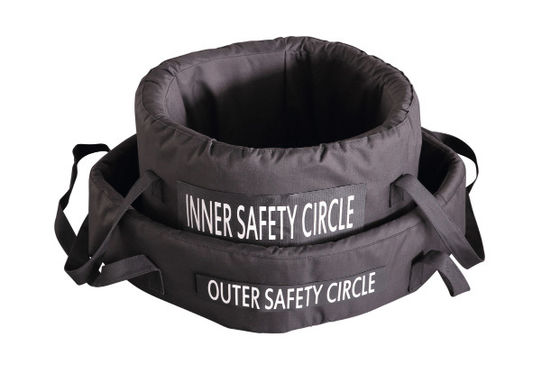

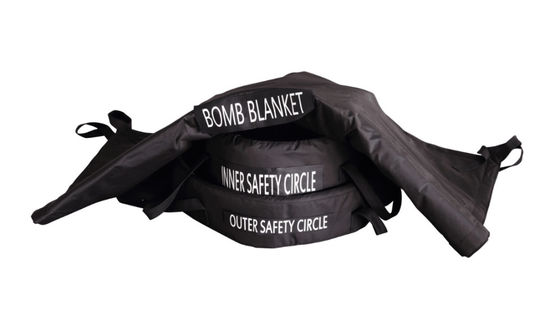

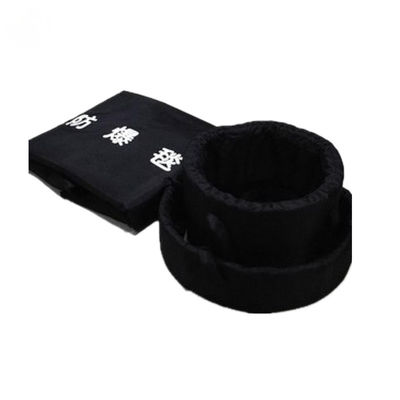

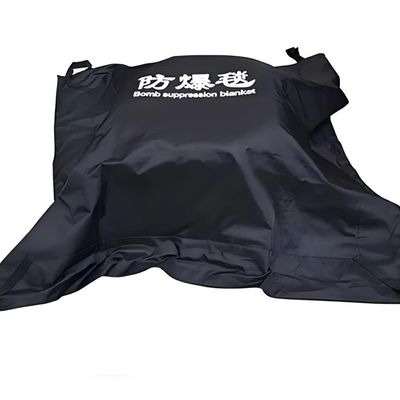

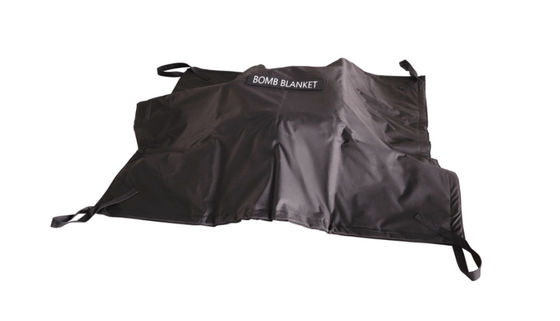

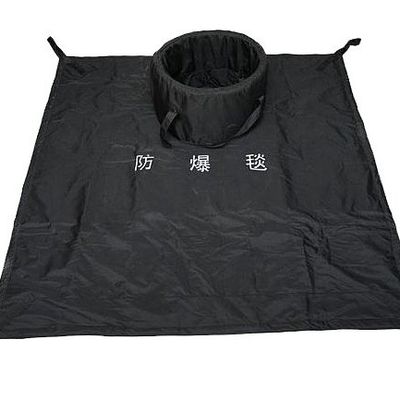

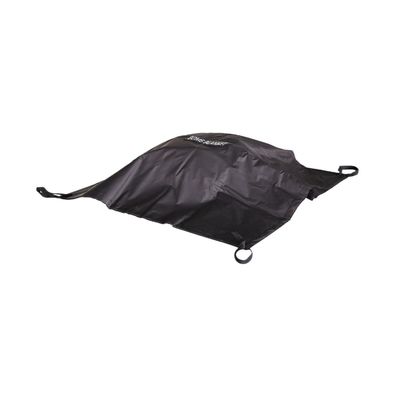

Military-grade EOD blast suppression system meeting GA69-2007 standards, engineered with 360° overlapping UHMWPE barriers. Deploys in 25 seconds to neutralize 82-type grenade explosions (1800m/s fragment velocity). 29.8kg total weight enables single-operator transport with V50≥2000m/s protection.
Radial-aligned fiber layers convert explosive force into vertical dispersion (86% energy redirection). Reinforced stitching withstands 6000N tensile stress at 250mm seams. Concave barrier design optimizes shockwave deflection angles (22-34°).
Color-coded interlock system ensures 30sec setup (2-person verified). Thermal-resistant handles (600°C/5sec exposure). Integrated anchor slots accommodate standard 12mm ground stakes.
Machine-washable cover (40°C max) preserves ballistic properties. Available in 1680×1680mm standard or 1400-2000mm custom sizes. Interchangeable barrier rings support multi-layer stacking.
| Attribute | Value |
|---|---|
| Cover Dimensions | 1680×1680mm (±3mm tolerance) |
| Inner Barrier | 440mmΦ × 300mmH UHMWPE composite |
| Outer Barrier | 590mmΦ × 150mmH shock-absorbing frame |
| Material | Cross-laminated UHMWPE (8 layers @ 150GSM) |
| Weight | ≤30kg/set (fully assembled) |
| Fragment Protection | Steel ≤0.8g @ 2000m/s |
| Temperature Range | -50°C to +70°C |
