PEUD Composite Bullet Proof Fabric High Performance 1.6x100m Roll

PEUD Composite Bullet Proof Fabric High Performance 1.6x100m Roll

MOQ: 1PCS
Price: USD 45 - 111
Payment Terms: T/T,Paypal
Supply Ability: 1000 PCS/Month
Detail Information
Application:
Armor Panels
Dimensions:
1.6m (W) × 100m (L)
Weight Per Area:
115g/m²
Thickness:
0.25mm (nominal)
Compliance:
NIJ III (specified Load Conditions)
Supply Ability:
1000 PCS/Month
Highlight:

Composite bullet proof fabric

,

Composite PEUD composite fabric

,

High performance PEUD composite fabric

Product Description

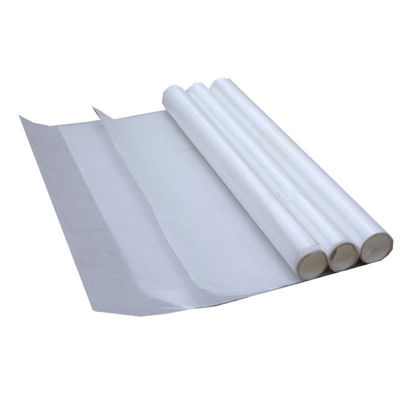

PEUD Composite Bullet Proof Fabric High Performance 1.6x100m Roll
LRLP115 PEUD Composite Armor Panel Fabric

1.6x100m Roll, 115g/m² (Stops 7.62mm Steel Core Bullets, NIJ III Compliant)

PEUD Composite Bullet Proof Fabric High Performance 1.6x100m Roll 0 PEUD Composite Bullet Proof Fabric High Performance 1.6x100m Roll 1
Product Introduction

High-performance LRLP115 PEUD composite fabric for armored panels. This ultra-high-molecular-weight polyethylene (UHMWPE) fiber material provides lightweight, corrosion-resistant protection for tactical systems while defeating 7.62mm steel-core rounds (Type 53/56) at optimized densities.

Ballistic Protection

Stops 7.62mm threats - 16kg/m² stops Type 56 rounds | 18kg/m² resists Type 53 rounds

Certification

NIJ III Compliant - Validated against 7.62mm standard ammunition

Material Composition

Continuous UHMWPE weave with high strength-to-weight ratio (<1.1g/cm³ density)

Environmental Resistance

Immune to moisture, acids, and alkaline environments

Production Efficiency

Industrial-grade 1.6m x 100m roll optimizes panel production

Key Performance Characteristics
Ballistic Performance
  • Tested Load: 16kg/m² defeats Type 56 7.62mm steel-core bullets
  • Enhanced Protection: 18kg/m² resists Type 53 7.62mm projectiles
Material Innovation
  • Core Fiber: UHMWPE strands with 3.5GPa tensile strength
  • Coating: Proprietary chemical binder enhances flexibility (3x abrasion resistance vs. raw PE)
Applications
  • Armor Panels: 25% weight reduction vs. traditional steel plates
  • Field Repair: Compatible with epoxy lamination systems
Technical Specifications
Attribute Value
Model LRLP115
Application Armor Panels
Dimensions 1.6m (W) × 100m (L)
Weight per Area 115g/m²
Thickness 0.25mm (nominal)
Compliance NIJ III (specified load conditions)
