Mini Explosive Ordnance Disposal Robot Smart With Modular Design

Smart Mini Explosive Ordnance Disposal Robot

Product Description:

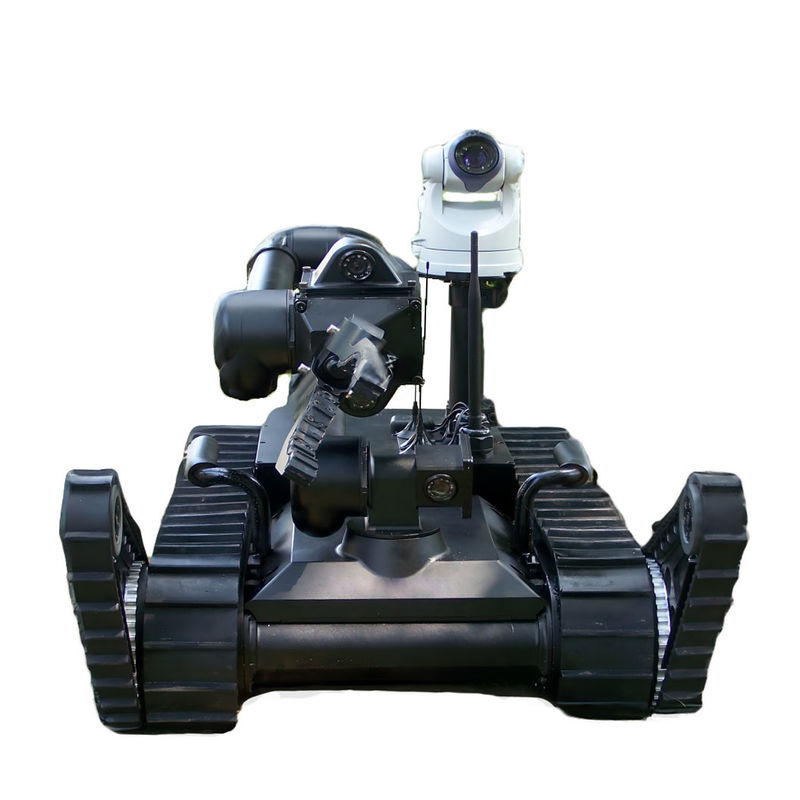

Introducing the Bot-EOD A16, a state-of-the-art EOD robot designed for explosive ordnance detection and disposal. This intelligent robot combines advanced modular design with lightweight construction, enabling rapid deployment in dangerous situations. Its superior capabilities make it an essential tool for professionals dealing with hazardous materials.

Key Features:

1. Modular Design:

   • Lightweight and easy to deploy
   • Ideal for reconnaissance and disposal of explosives

2. Versatile Mobility:

   • Equipped with a flipping arm and caterpillar tracks
   • Navigates complex terrains such as grasslands, snowy areas, and battlefields with ease

3. Intelligent Climbing Ability:

   • Integrated sensors and AI algorithms
   • Autonomously tackles slopes and stairs, preventing overturning

4. Long-Range Monitoring:

   • Provides video and audio transmission
   • Enables operations without exposing the robot's body

5. Advanced Manipulator:

   • Six-degree-of-freedom robotic arm
   • Safely transfers or disposes of suspicious explosive items

6. Electromagnetic Compatibility:

   • Certified for operation in harsh electromagnetic environments
   • Ensures reliable performance

7. GPS and Obstacle Avoidance:

   • Features GPS positioning and ultrasonic sensors
   • Enhances navigation capabilities

8. Custom Navigation Options:

   • Additional laser and inertial navigation systems available
   • Supports autonomous navigation and charging

Specifications:

• Dimensions:

  • Length: 700 mm
  • Width: 490 mm
  • Height: 180 mm

• Weight:

  • 23 kg (without battery)
  • 26 kg (with battery)

• Load Capacity: ≥ 60 kg

• Speed: 0–2 m/s, with remote control offering variable speed and real-time display

• Turning Radius: Zero-radius turn

• Material: Aerospace-grade aluminum alloy, precision machined

• Climbing Ability:

  • 40° slopes
  • ≥ 35° stairs

• Obstacle Crossing Capability:

  • Width: 400 mm
  • Height: 250 mm

• Power Source: Rechargeable lithium battery (24V 15.6AH; expandable)

• Operational Time: 2–5 hours

Cameras & Sensors:

• Drive Camera:

  • Color CCD camera with infrared night vision
  • Optional reverse camera available

• Sensors:

  • 4 ultrasonic distance sensors
  • 1 gyroscope
  • 1 accelerometer
  • 1 GPS
  • 1 temperature sensor

• Communication:

  • Wireless range: 1000 m visible distance
  • Wired (fiber optic): 100 m

Manipulator:

• Modular Design:

  • Easily detachable with no external wiring

• Max Arm Reach: 1.6 m

• Grip Capacity:

  • Maximum: 10 kg
  • Horizontal extension: 5 kg

• Independent Degrees of Freedom: 6

  • Includes 360° shoulder rotation, 180° shoulder swing, and more

• Quick Change Gripper:

  • Rapid interchange of grippers, knives, scissors, rakes, hooks, etc.
  • Change completed in under one minute

Monitoring Gimbal:

• Modular Design:

  • Detachable with no external wiring

• Camera Specifications:

  • Infrared camera with automatic low-light activation
  • Night vision up to 50 m
  • Coverage diameter of approximately 20 m

• Gimbal Movement:

  • 2 independent freedoms
  • Adjustable rotation speed
  • 360° continuous rotation
  • Tilt range: -15° to 90°

The uBot-EOD A16 is your go-to smart robot for efficient and safe explosive ordnance disposal operations.
