Customizable Explosion Proof Blanket Military Law Enforcement Equipment With Dual Barriers

MOQ:	1PCS
Price:	USD 9 - 100
Payment Terms:	T/T,Paypal

Detail Information

Product Description

Detail Information

Cover Dimensions:

1680×1680mm (±3mm Tolerance)

Inner Barrier:

440mmΦ × 300mmH UHMWPE Composite

Outer Barrier:

590mmΦ × 150mmH Shock-absorbing Frame

Material:

Cross-laminated UHMWPE (8 Layers @ 150GSM)

Weight:

≤30kg/set (fully Assembled)

Fragment Protection:

Steel ≤0.8g @ 2000m/s

Temperature Range:

-50°C To +70°C

Supply Ability:

1000 PCS/Month

Highlight:

Customizable Explosion Proof Blanket

Customizable Law Enforcement Equipment

Military Explosion Proof Blanket

Product Description

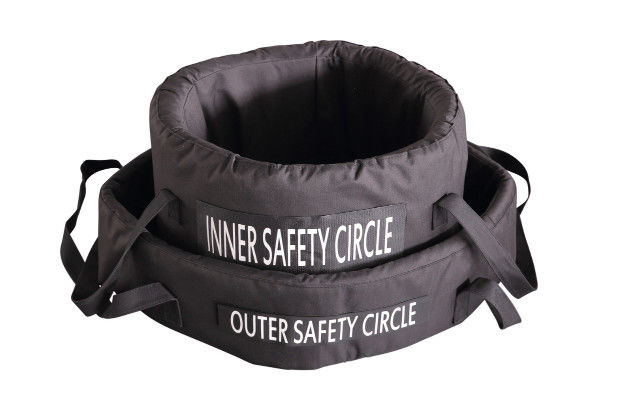

GA69-2007 Certified Explosive Containment Blanket - 30kg UHMWPE Bomb Blast Shield with Dual Barriers (Customizable 1600mm-1680mm Sizes)

Product Introduction:

Military-grade EOD blast suppression system meeting GA69-2007 standards, engineered with 360° overlapping UHMWPE barriers. Deploys in 25sec to neutralize 82-type grenade explosions (1800m/s fragment velocity). 29.8kg total weight enables single-operator transport with V50≥2000m/s protection.

⭐️ Tiered Defense System: 300mm Inner Barrier + 150mm Outer Ring
⭐️ 8-Layer Cross-Ply UHMWPE Construction (ASTM D7791-21)
⭐️ Certified Against 450g TNT Equivalent Explosives
⭐️ Anti-Slip Coating Maintains 15° Slope Stability
⭐️ Tool-Free Assembly with Magnetic Alignment Guides

Blast Energy Dissipation

Radial-aligned fiber layers convert explosive force into vertical dispersion (86% energy redirection)
Reinforced stitching withstands 6000N tensile stress at 250mm seams
Concave barrier design optimizes shockwave deflection angles (22-34°)
Rapid Deployment Protocol

Color-coded interlock system ensures 30sec setup (2-person verified)
Thermal-resistant handles (600°C/5sec exposure)
Integrated anchor slots accommodate standard 12mm ground stakes
Maintenance & Customization

Machine-washable cover (40°C max) preserves ballistic properties
Available in 1680×1680mm standard or 1400-2000mm custom sizes
Interchangeable barrier rings support multi-layer stacking

Product Specifications

Cover Dimensions: 1680×1680mm (±3mm tolerance)
Inner Barrier: 440mmΦ × 300mmH UHMWPE composite
Outer Barrier: 590mmΦ × 150mmH shock-absorbing frame
Material: Cross-laminated UHMWPE (8 layers @ 150GSM)
Weight: ≤30kg/set (fully assembled)
Fragment Protection: Steel ≤0.8g @ 2000m/s
Temperature Range: -50°C to +70°C

Customizable Explosion Proof Blanket Military Law Enforcement Equipment With Dual Barriers 2
